Gewindesicherung und Sonderausführungen auf Anfrage!
Ausführungen
Form KNM
Standard-Federkraft (M3 – M24)
Form KNSM
verstärkte Federkraft (M4 – M24)
Max. Einsatztemperatur
250°

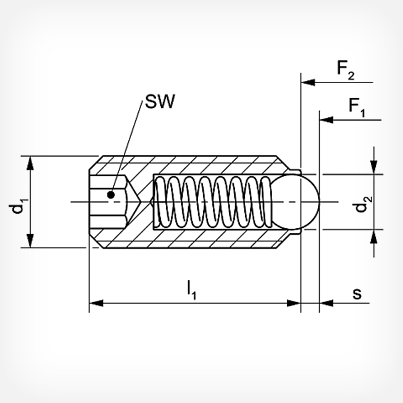

Artikel-Nr. | d1 | d2 | l1 | s | SW | Federkraft | Artikel-Nr. | Federkraft | ||
Form KNM | F1 (N) | F2 (N) | Form KNSM | F1 (N) | F2 (N) | |||||
02-075 KNM03x9I | M3 | 1,5 | 9 | 0,45 | 1,5 | 2,2 | 3 | – | – | – |
02-075 KNM04x10I | M4 | 2,5 | 10 | 0,8 | 2,0 | 6 | 12 | 02-095 KNSM04x10I | 10 | 20 |
02-075 KNM05x14I | M5 | 3,0 | 14 | 0,9 | 2,5 | 7 | 13 | 02-095 KNSM05x14I | 13 | 30 |
02-075 KNM06x15I | M6 | 3,5 | 15 | 1,0 | 3,0 | 9 | 15 | 02-095 KNSM06x15I | 24 | 40 |
02-075 KNM08x18I | M8 | 5,0 | 18 | 1,5 | 4,0 | 20 | 35 | 02-095 KNSM08x18I | 40 | 60 |
02-075 KNM10x23I | M10 | 6,0 | 23 | 2,0 | 5,0 | 25 | 45 | 02-095 KNSM10x23I | 60 | 90 |
02-075 KNM12x26I | M12 | 8,0 | 26 | 2,5 | 6,0 | 35 | 60 | 02-095 KNSM12x26I | 75 | 115 |
02-075 KNM16x33I | M16 | 10,0 | 33 | 3,5 | 8,0 | 65 | 110 | 02-095 KNSM16x33I | 115 | 190 |
02-075 KNM20x43I | M20 | 12,0 | 43 | 4,5 | 10,0 | 80 | 120 | 02-095 KNSM20x43I | 115 | 210 |
02-075 KNM24x48I | M24 | 15,0 | 48 | 5,5 | 12,0 | 100 | 150 | 02-095 KNSM24x48I | 125 | 240 |
